2435-6100Kv 2-3S Brushless Mini Motor 2.0mm Shaft 3.5mm Connector 1/16, 1/18

2435-6100Kv 2-3S Brushless Mini Motor 2.0mm Shaft 3.5mm Connector 1/16, 1/18 - Image 2

2435-6100Kv 2-3S Brushless Mini Motor 2.0mm Shaft 3.5mm Connector 1/16, 1/18 - Image 3

2435-6100Kv 2-3S Brushless Mini Motor 2.0mm Shaft 3.5mm Connector 1/16, 1/18 - Image 4

2435-6100Kv 2-3S Brushless Mini Motor 2.0mm Shaft 3.5mm Connector 1/16, 1/18

Original price was: $13.99.Current price is: $9.79.

SKU: 2435-6100 Category: Radio Control

Control the delivery date and try to deliver it in the fastest time
Online assistance, always at your service.
Enjoy top quality items for less
Expertly Sourced, Quality Guaranteed

Description
Reviews (0)

Excellent Up Grade for the Team Losi Mini-T 2.0, Mini-B, and the Losi Mini JRX2 running a Brushless ESC.

This is also a great motor for upgrading small RC model boats to brushless that use a 300-400 size brushed motor.

Features:

4 Pole 12 Slot Hi-Torque Motor Design.

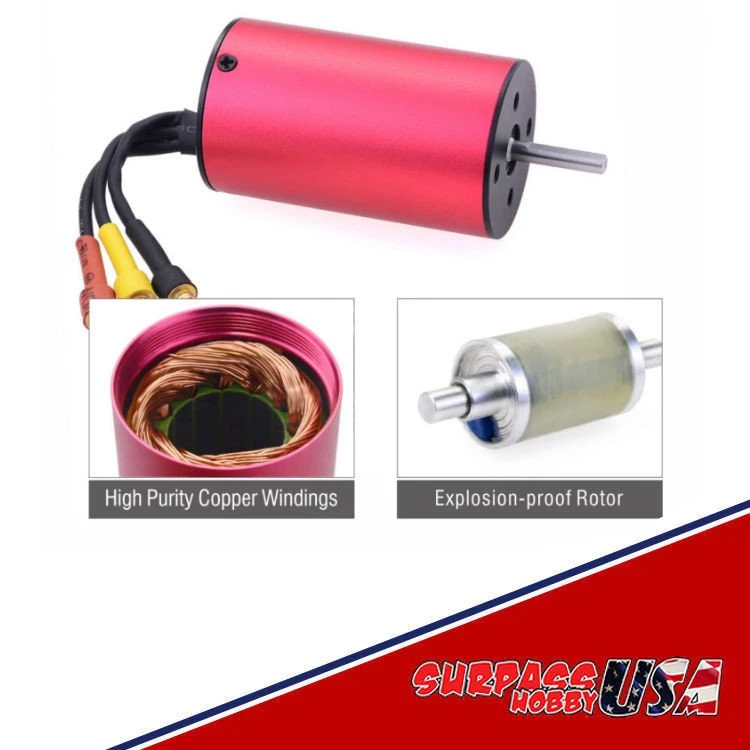

High Quality: CNC Machined 6061 T6 Aluminum Billet Heat Sink Can, High Purity Copper Windings Maximize Efficiency, High RPM ABEC5 Oversized Bearings.
Universal fit, for 1:16,1:18, 1:14 2s rc racing car.
Motor Mounting Holes for M2.5 or M3 Screws
Precision balanced rotor, smoothness for better reliability and maximum rpm.
Super thin stator-laminations (0.35mm).

Specifications:

Series: KK 2435
Color: Red
Kv: 6100kv
Watt: 300
Max RPM: 60,000
Maximum voltage: <9.6v / 2 Cell Lipo
Max amps: 32A
Rotor poles: 4
Diameter: 24mm
Length: 35mm
Shaft: 2.0mm
Shaft length: 12mm
Connector: 3.5mm gold
Weight: 56g

Recommended ESC: 30A ESC Brushless Waterproof Electric Speed Controller. We have suitable ESC available on our website and also listed below in related items.

Shaft size is 2.0mm. We have these couplings on our website. Please see related items below or click here.
