This Microzone radio is the same transmitter/receiver set we use to replace the standard radio gear on our Lake Reaper bait boats so the boat is compatible with the Deeper Pro+ & Chirp Fish Finders. This handset is compatible with ALL Deeper Fish Finders. Includes Aerial Bung.
Â
Wiring guide included. We also have the wiring guides available in the images on this listing.Â
For more help fitting please do not hesitate to call us on 01865 848000 or email us at [email protected].
Â
LIMITED STOCK AVAILBLE AT THIS PRICE!

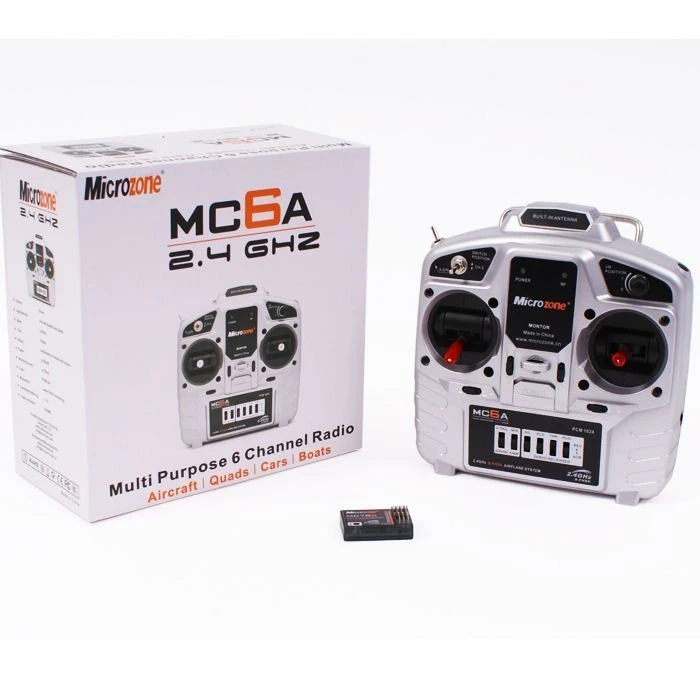

MicroZone are a brand new radio manufacturer to the UK, with many years experience manufacturing for other companies MicroZone have taken the bold step to build their own brand. Having noticed a BIG gap in the market for top quality radio systems at great prices it was decided to launch MicroZone with the MC6A, a 6 channel 2.4GHz multi option radio system. Designed and built to work with Aircraft, Cars, Lorries, Quads and Boats this really is the start of a great new radio system.
MicroZone have market leading technology and systems which enable them not only to produce a great looking transmitter with internal antennas but also apply that same streamlined approach to their receivers as well, making installation in most models a much easier option! If you prefer your receiver with an external antenna, MicroZone also produce an extra-long range receiver perfect for use larger airframes or in model boats where you need to be above the waterline.
Also available are GPS systems and S-BUS receivers for use on Quads and training aircraft.
Features

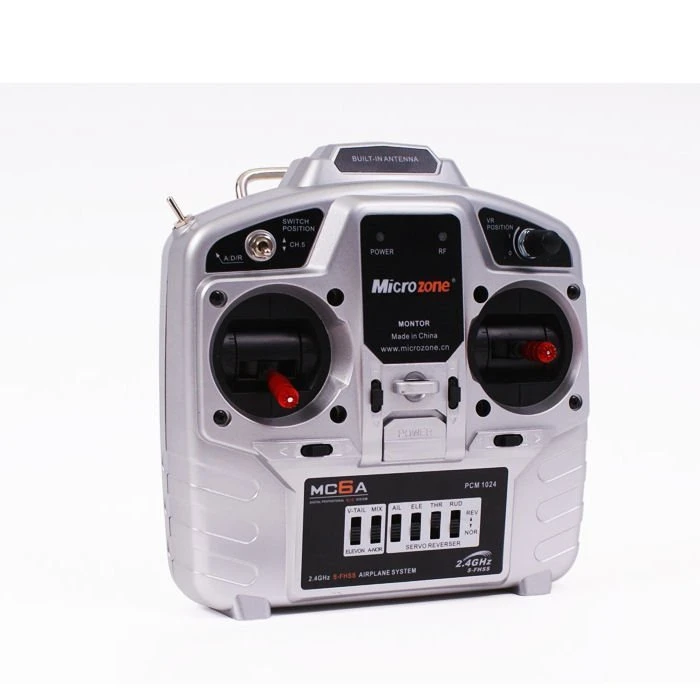

- 2.4GHz Transmitter
- 6 Channels
- Adjustable Anodized Sticks
- Internal Antenna System
- Suitable For All Models.

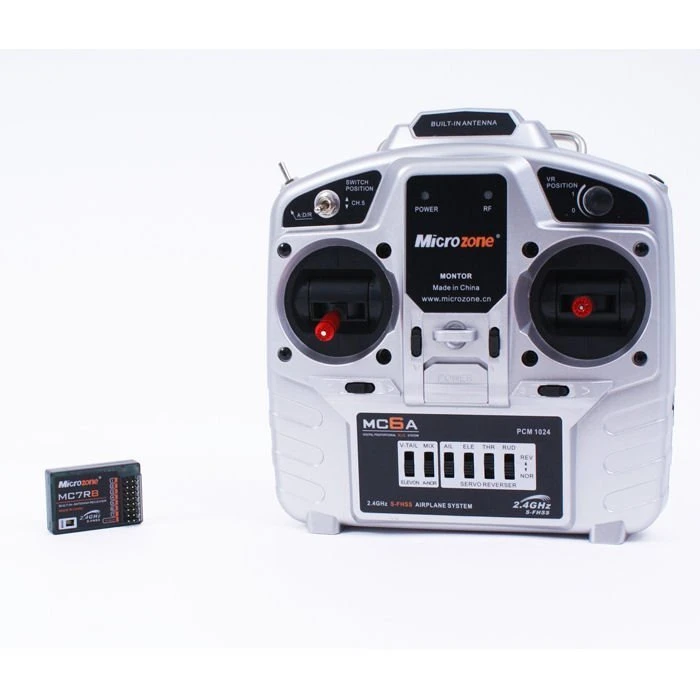

- MC7RB Receiver
Specification
| Colour | Silver with Red Sticks |
| Applications | Aircraft, Quads, Cars and Boats |
| Frequency | 2.4GHz |
| Channels | 6 |
| Trims | Digital |
| Adjustable Sticks | Length and Tension |
| Power | 100mW |
| Working Current | 120mA |
| CodeL | PCM1024 |
| Modulation | FHSS |
| Battery Req | 4x AA |
| Receiver | MC7RB |
Microzone MC6C instructions below:
Microzone MC6C Instructions
Microzone MC6C Lake Reaper fitting instructions below:

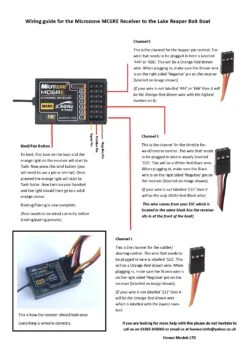

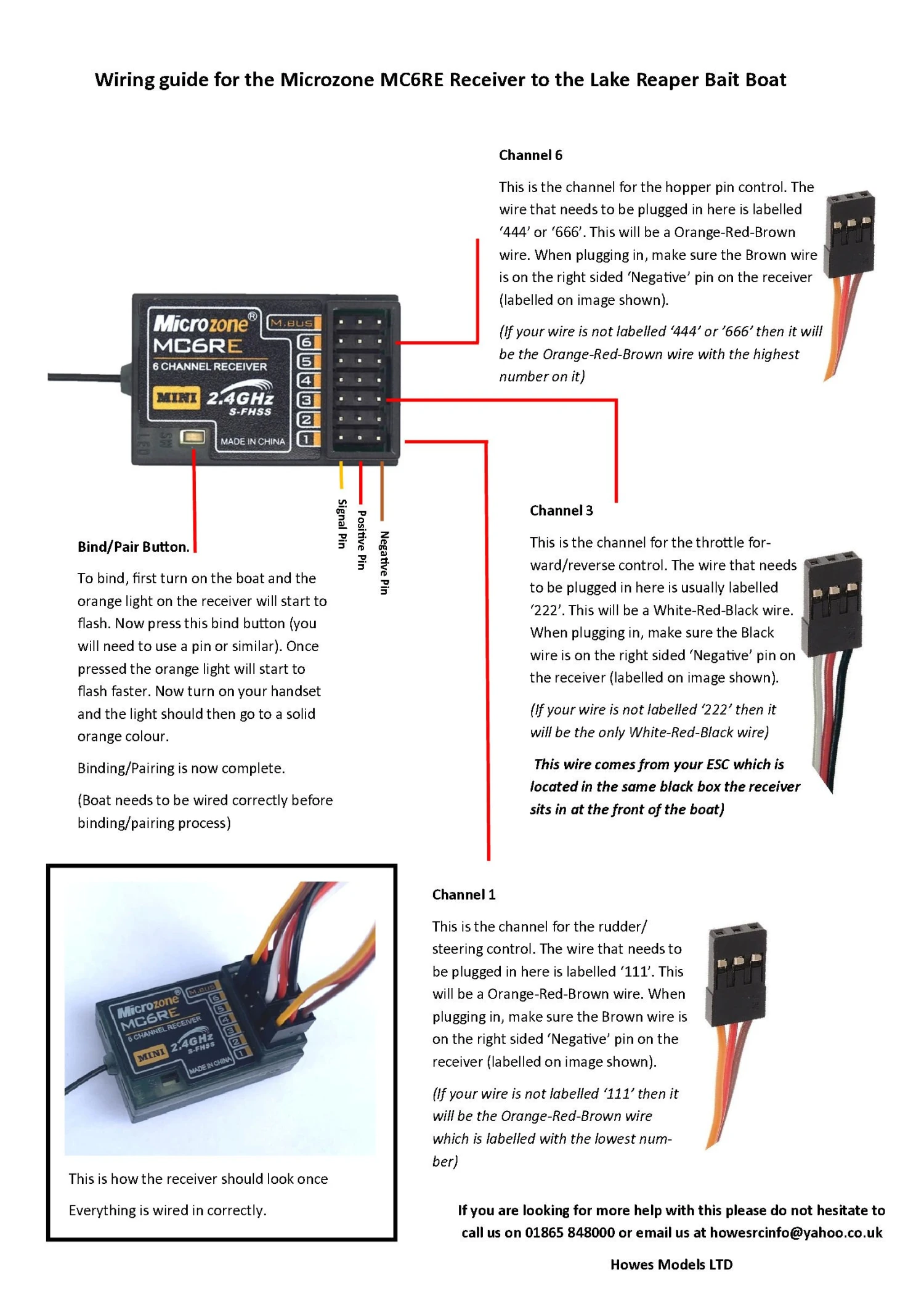

Microzone Receiver Fitting Instructions PDF
