SKYRC D100 V2 AC/DC Dual Balance Charger/Discharger/Power Supply

SKYRC D100 V2 AC/DC Dual Balance Charger/Discharger/Power Supply

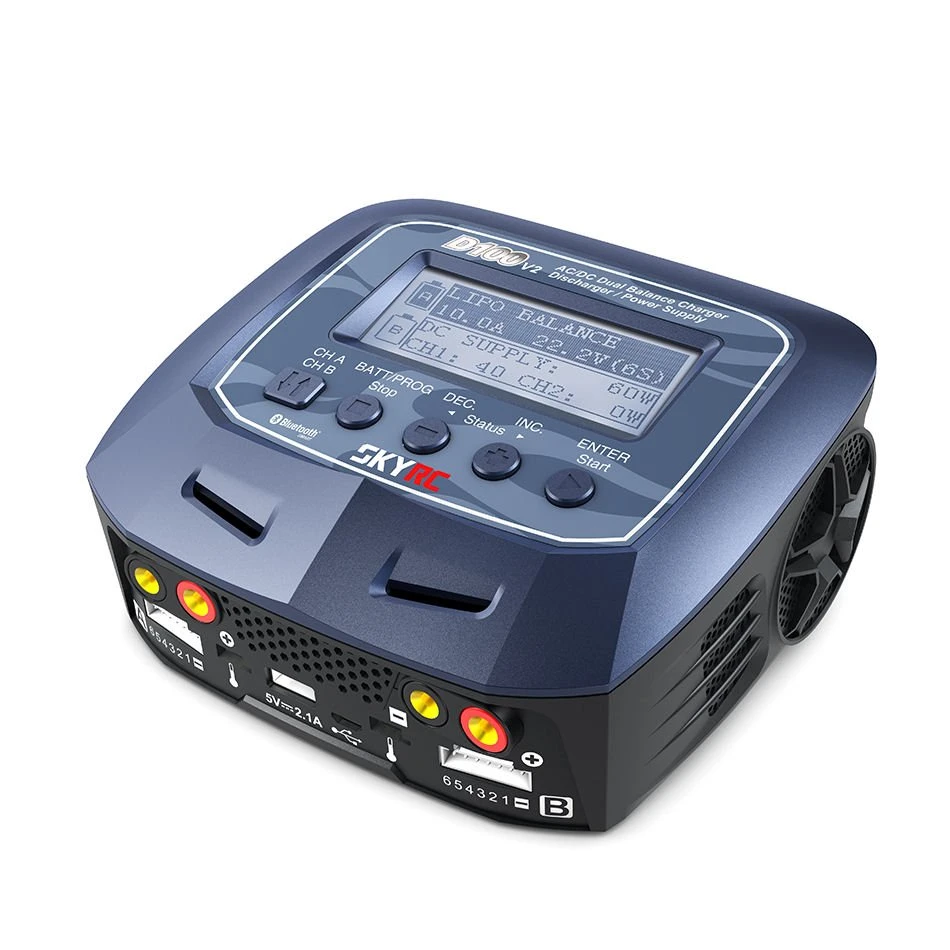

The SKYRC D100 V2 charger is a dual charger, capable of charging any 2 batteries simultaneously using the two separate channels.

The SkyRC D100 V2 is a twin-channel charger with two independent circuits which can charge batteries of varying chemistries (LiPo/LiHV/LiFe/Lilon/NiMH/NiCd/PB) simultaneously. It is capable of operating as a power supply, with the maximum output of 100W to help hobbyists power their DC equipment. The voice guide function allows for easier use, making this charger ideal for new users.

This charger features:

► Voice Guide: makes the charger more user-friendly and customizable.

► Power Distribution: supports power distribution between two channels and PSU under the total power of 100W in AC mode.

► DC Power Supply: can supply 100W/13.8V DC power, allowing hobbyists to power equipment on the field.

► Twin-Channel Charging: allows you to plug 2 batteries into the charger simultaneously, and it will intelligently and automatically charge 2 batteries at once.

► LiHV Mode Available: the additional LiHV mode is able to charge the new generation of LiPo batteries with an end of charge voltage of 4.34V.

---

The SKYRC D100 V2 is compatible with PC and mobile applications to allow for easier monitoring and use.

► SkyCharger App: The Bluetooth 4.0 connectivity allows the user to control and monitor the D100 V2 comfortably through an app on a portable device such as smartphone, iPad, or iPhone. The iOS app can be downloaded from iTunes Store, and the Android app from Google Play Store. Operation of the app is self-explanatory and the same on iOS and on Android. Explicit pairing is not required; after download and installation just activate Bluetooth on your mobile device and launch the app. The D100 V2 and your device will establish a Bluetooth connection automatically.

► Charge Master: The user can monitor pack voltage, cell voltage and other data during the charging, view charge data in realtime graphs, and can also control charging and update firmware from the “Charge Master” PC Software.



A unique feature of SKYRC chargers is the Scan To Go automatic charging system. Each battery requires its own dedicated charging process, and it is easy to set up the charger incorrectly for a specific type of battery, resulting damage the battery or even cause accident. Scan To Go provides a solution to this problem by allowing the user to assign a QR Code which contains all the relevant data for the battery for charging or discharging. The user can create a unique QR Code by using “SkyCharger” apps. Print it and paste it on the battery. Using your smart phone and launch “SkyCharger” app. Since all the essential information is stored in the QR Code, all you need to do is press the Scan button, and the charge or discharge process will start automatically.

Input	AC / DC
Charge Power	2x 100W
Discharge Power	2 x 10W
Charge Current	0.1 – 10A
Discharge Current	0.1 – 5A
Brand	Sky RC
Compatible Chemistries	NiMH / NiCd / LiPo / LiFe / LiIon / LiHV / PB
Lithium Cell Count	1 – 6S
NiMH / NiCd Cell Count	1 – 15S
PB Cell Count	2 – 20V
